Description

Typically building services supports will combine channel and bracketry of unproven performance from a variety of sources into a single installation.

As more focus is given to reducing risk and raising standards within the sector, it is becoming increasingly common that more contractors are required to provide design verification for the loads of the support.

In turn this requires that the engineer has dependable information and load data for the components and connections used in the design and that it can be verified that the products specified by the engineer are those which are actually used on site.

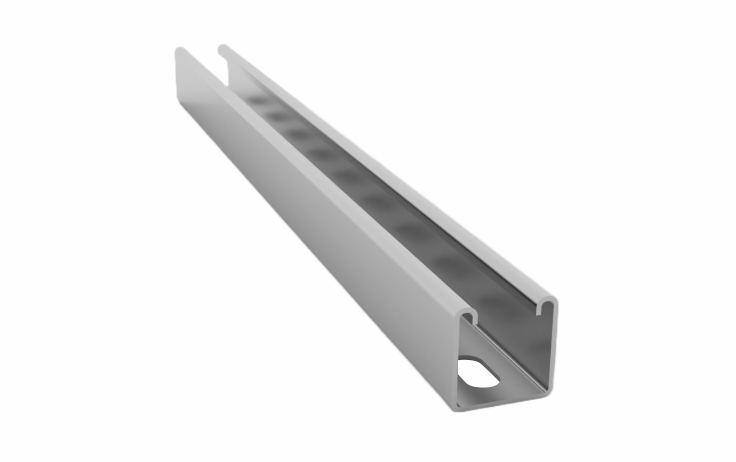

IF Channel System of which IF Channel sections are part of answers this question and provides the specifier and contractor with a tested system.

Features

Slot size: 14mm x 25mm

Available at 3m, 4m and 6m lengths or cut to size (see product table below).

can support 397kg per metre, uniformly distributed.

Marked at regular intervals along each length with the Industrial Fasteners name and BS number as required by the standard.

Technical Data.

Material Standard: BS EN 10346:2009

Material Specification: S280GD + Z275

Minimum Yield Stress: 280N/mm2

275g/m2 min. coating weight

20µm average coating thickness
