Description

In building services tier 1 contractors are asking: “can you demonstrate that the structure you have installed can take the load applied to it and that the supports and fixings are fit for purpose?” one method of providing evidence is through a tested channel system.

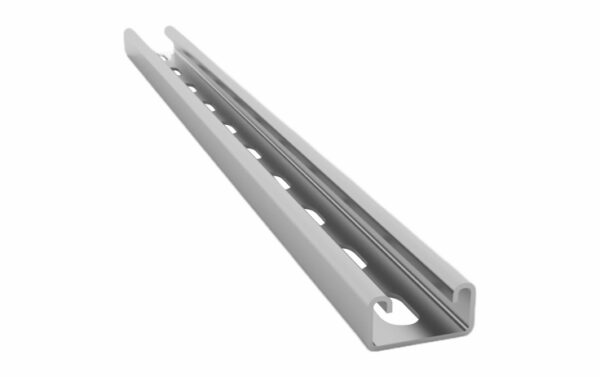

Slotted channel has a slot size of 14 x 25mm                                                                                                                                                                      can support 77kg per metre, uniformly distributed.
Available in 2m, 3m, 6m, or available cut to size – (see product table).
IF pre-galvanised channel is manufactured from continuously hot-dip zinc-coated steel strip conforming to BS EN 10346:2009.
Technical Data

Material Standard: BS EN 10346:2009
Material Specification: S280GD + Z275
Minimum Yield Stress: 280N/mm
Finish: Pre-galvanised
275g/m2 min, coating weight
20µm average coating thickness
