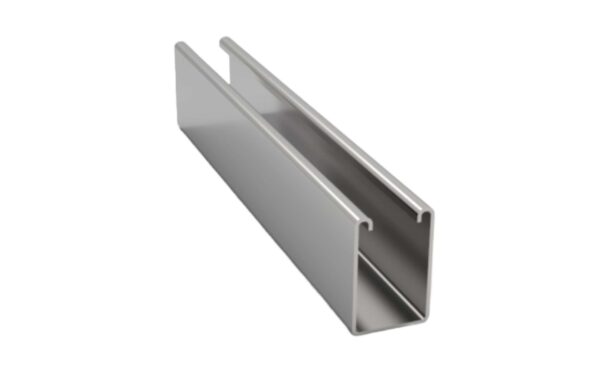

82 MM Slotted Channel
Code :SCS 82/2.5 PG
Available Finish :
Hot-Dip Galvanized -H
Electroplated Zinc -Z
Pre-Galvanized -PG
Stainless Steel Type 304 -S4
Stainless Steel Type 316 -S6
Powdercoat -PC
Aluminium -AL
Dacromet -D
Duracoat Gold-DCG
Duracoat Silver -DCS
FRP -FR
Features
82mm deep profile for heavier loads
can support 966kg per metre, uniformly distributed.
Slot size 14mm x 25mm
IF pre-galvanised channel is made from continuously hot-dip zinc coated steel strip conforming to BS EN 10346:2009.
Technical Data
Mechanical Standard: BS EN 10346:2009
Material Specification: S280GD + z275
Minimum Yield Stress: 280N/mm2
Finish: Pre-galvanised
275g/m2 min. coating weight
20μm average coating thickness
